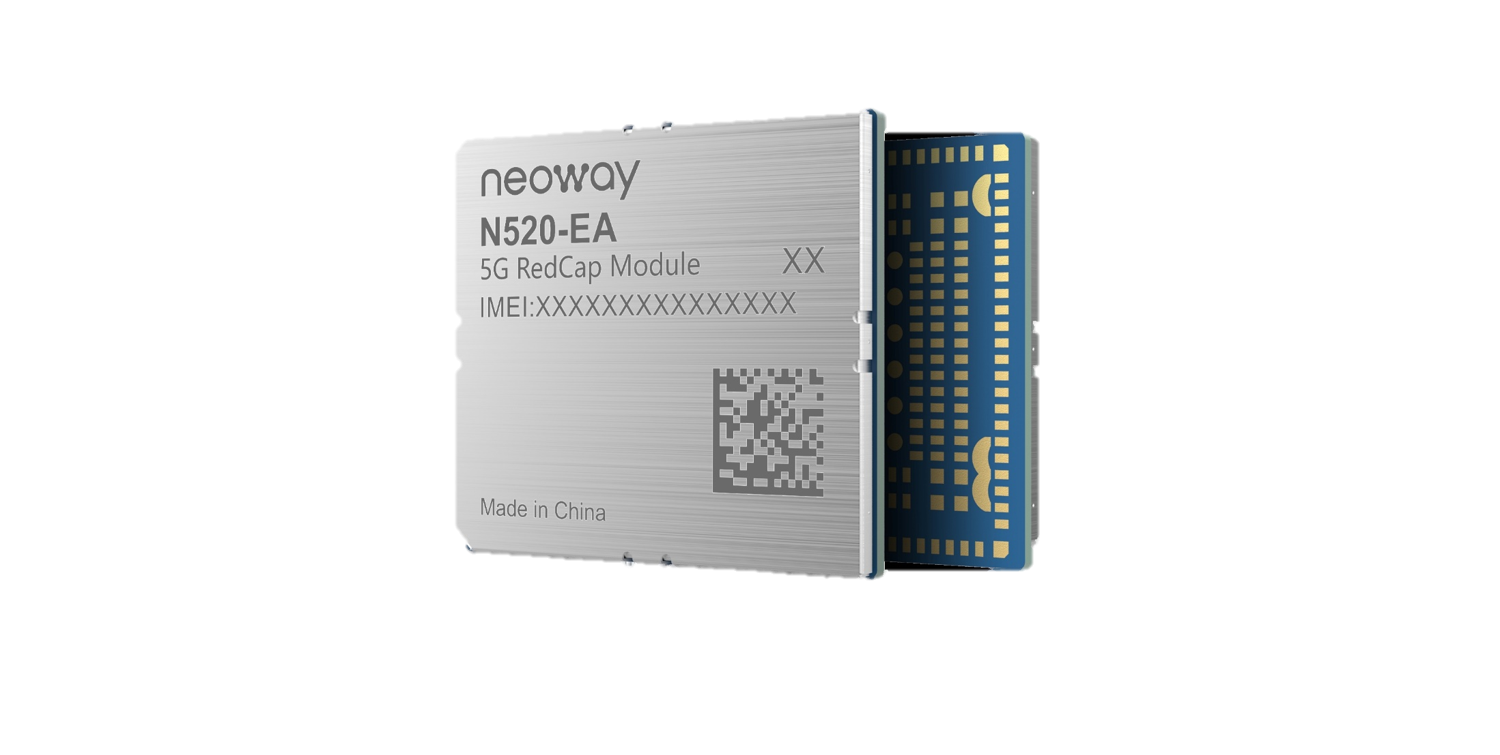

N520-EA

N520 is a 5G R17 standard redcap module. Equipped with a made-in-China chip, it is backward compatible with LTE\WCDMA networks.

Product Features

288-Pin LGA

Hi5612

NCM/RNDIS/NTP/IPv4/IPv6

Specifications

Supply Voltage	3.2 V ~ 4.2 V, typical: 3.8 V
Dimensions	32.0 mm x 29.0 mm x 2.85 mm
Package	LGA
Operating temperature	-30℃ ~ +70℃
Interface	RGMII USB 2.0 I2S UART USIM (1.8 V/3. 0 V)
Frequency band	5G NR: n1/n3/n5/n8/n28/n41/n77/n78/n79; LTE: B1/B3/B5/B8/B34/B38/B39/B40/B41; UMTS: B1/B5/B8
Protocol	PPP/RNDIS/TCP/UDP/FTP/HTTP/HTTPS/NTP/ IPv4/IPv6
Certification	CCC/SRRC/CTA/CE/RoHS*
