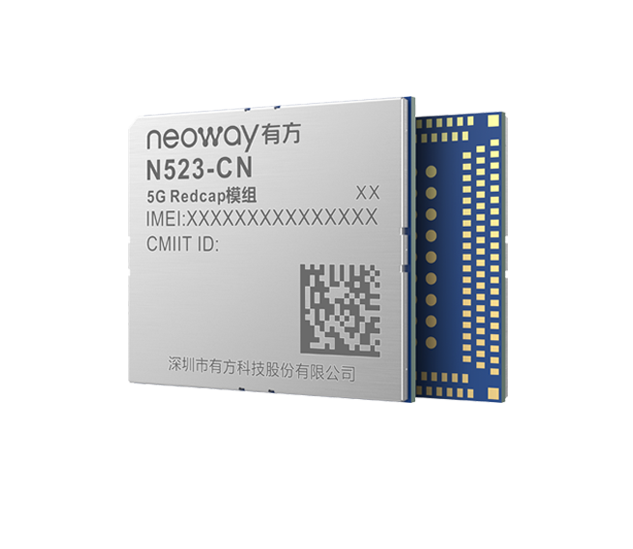

N523

The ReadCap automotive module solution, featuring domestic chips with high cost-effectiveness, meets the demands of OEMs both domestically and internationally, and supports Open version development.

Product Features

ASR1903E/H

Openlinux

Ethernet / Wi-Fi Interface / GNSS

-40℃～+85℃

Specifications

Supply Voltage	3.3V~4.3V, Typ: 3.8V
Dimensions	33.0mm x 37.5mm x 2.85mm (±0.2mm)
Package	299-pin LGA
Operating temperature	-40℃～+85℃
Interface	RGMII SDIO 2 I2C2 SPI2 I2S/PCM1 PCIE1 USB 2.01 UART*3
Frequency Bands	5G: N1、N3、N5、N8、N28、N41、N78、N79 LTE:B1、B3、B5、B8、B34、B38、B39、B40、B41B
Antenna	1T2R/1T1R
Certifications	CCC/SRRC/CTA/RoHS/REACH/AEC-Q104
Region	China
