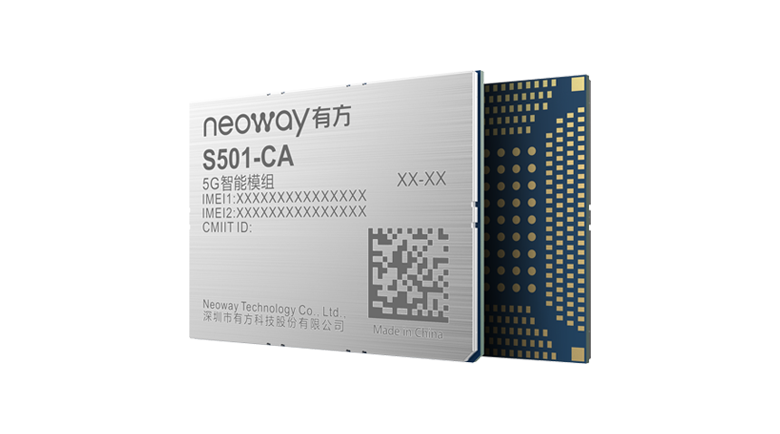

S501

The S501 is a 5G smart module that supports Android 13, features 4 sets of cameras, and offers up to 64MB capacity. It is suitable for PDAs, tablets, video surveillance, VR devices, automotive equipment, data collection terminals, smart robots, smart home devices, industrial handheld terminals, drones, law enforcement equipment, and more.

Product Features

8-core A76*4+A55*4

5G full-network

Powerful AI computing power

GNSS/Wi-Fi/BT

Specifications

Supply Voltage	VBAT: 3.5 V ~ 4.2 V, typical: 3.8 V
Dimensions	42.5 mm x 56.5 mm x 2.85 mm
Package	636- pin LGA
MCP	128 GB UFS + 6GB LPDDR4X 64 GB eMMC + 4GB LPDDR4X
camera	4*MIPI_CSI interface, supporting up to 64MP resolution and a maximum of four-camera simultaneously.
Frequency Bands	NR-FDD: n1/n3/n5/n8 NR-TDD: n41/n78/n79 LTE FDD: B1/B3/B5/B8 LTE TDD: B34/B38/B39/B40/B41 WCDMA: B1/B5/B8
Certifications	CCC/SRRC/CE/RoHS
Regions	Chinese Mainland / India / Southeast Asia / Europe / Africa
